Square D 8903LXO 30 Amp, 12 Pole Lighting Contactor
Square D 8903LXO 30 Amp, 12 Pole Lighting Contactor is backordered and will ship as soon as it is back in stock.
- New,
- 30 Amp,
- 12 Pole,
- 600 Volt,
- 110/120 VAC,
- 50/60 Hz Coil,
- Mechanically Held,
- Open Style,
- UL Listed.
- UPC: 785901057468.

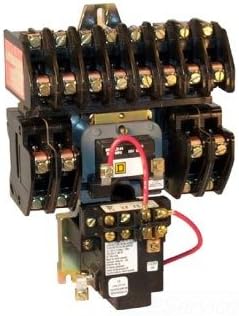

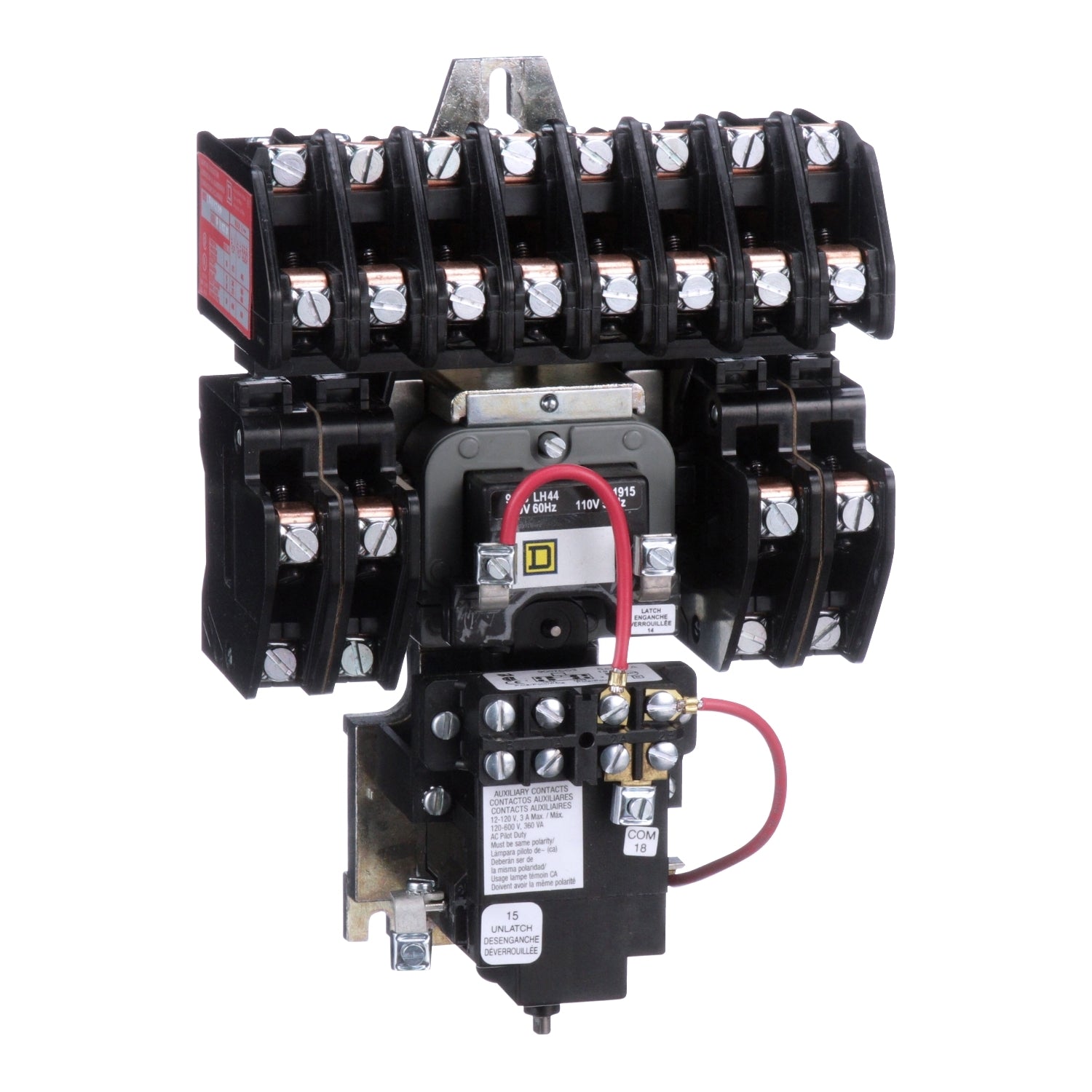

- Product is in sealed box. Picture of actual contactor is from manufacturer's website.
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 12 pole device has 12 NO contacts. Supplied with two operating coils. One is for latching the contactor and the other is to unlatch the contactor. Both coils are 110/120 VAC 50/60 Hz rated. Other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coils and contacts are easily replaced. Lighting contactor is 8.81 inches tall, 5.63 inches wide and 3.25 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
