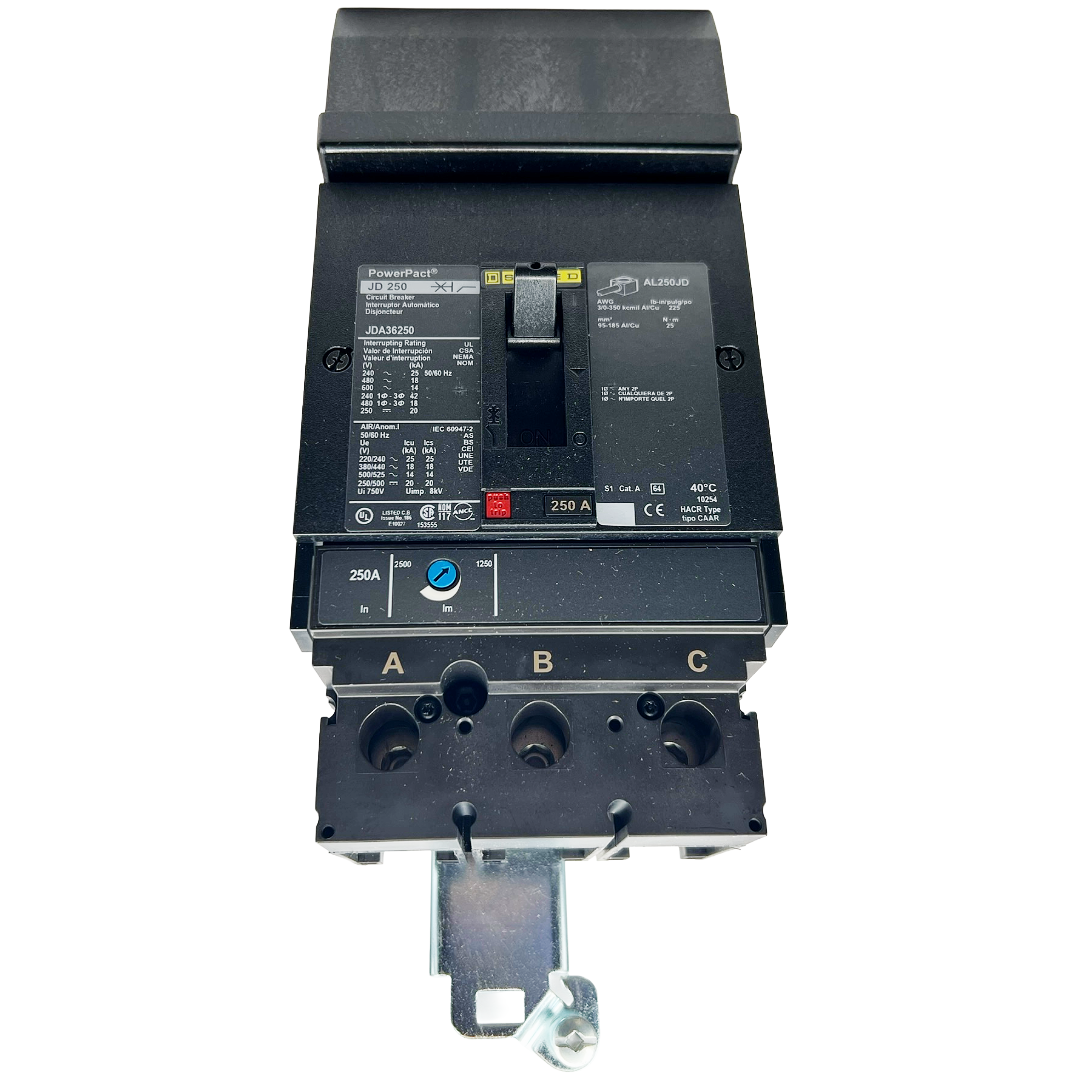

Square D JDA 3 Pole, 250 Amp PowerPact Circuit Breaker

• New,
• 250 Amp,
• 3 Pole,
• 14kA
• 600VAC,
• I-Line,

• PowerPact,
• ABC Phase Connection,
• UL Listed.

• UPC: 785901834175.

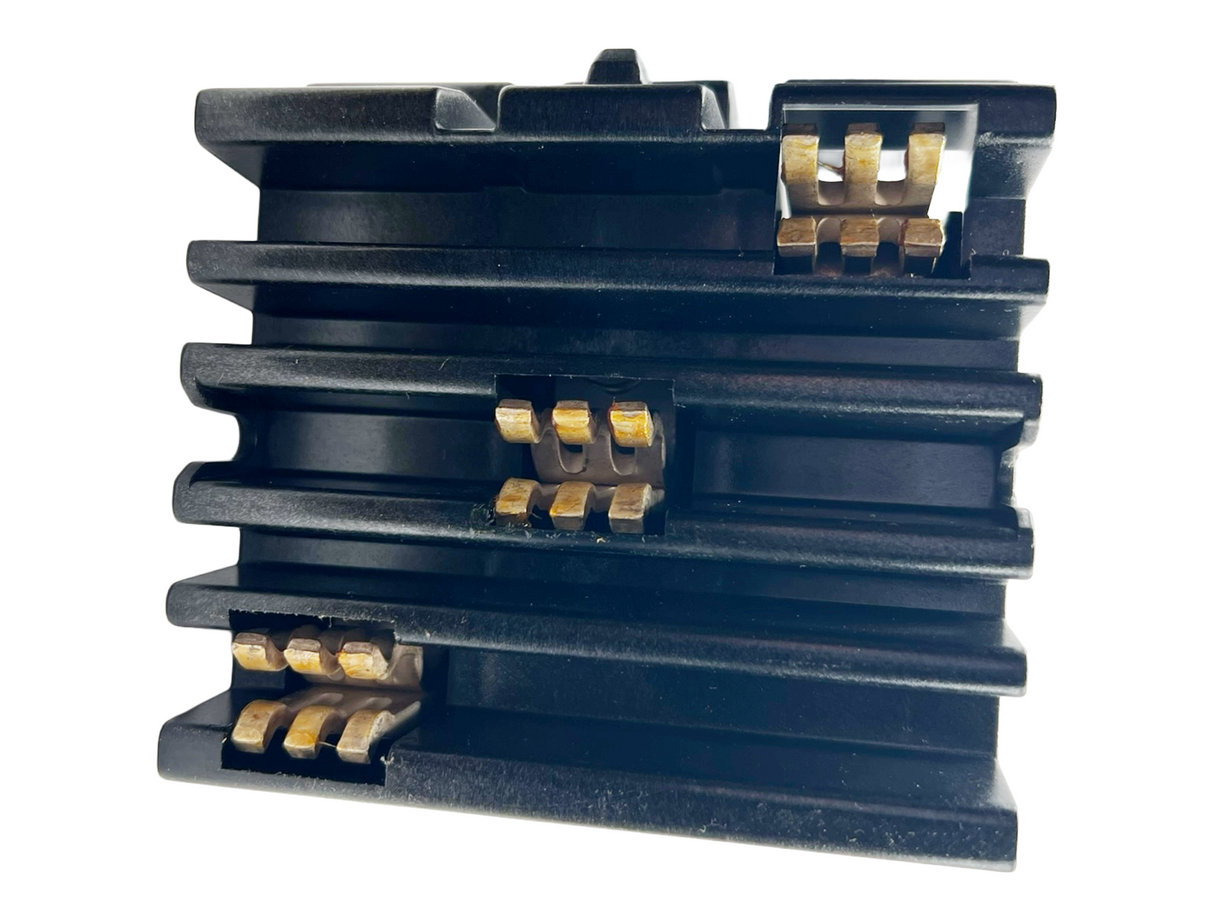

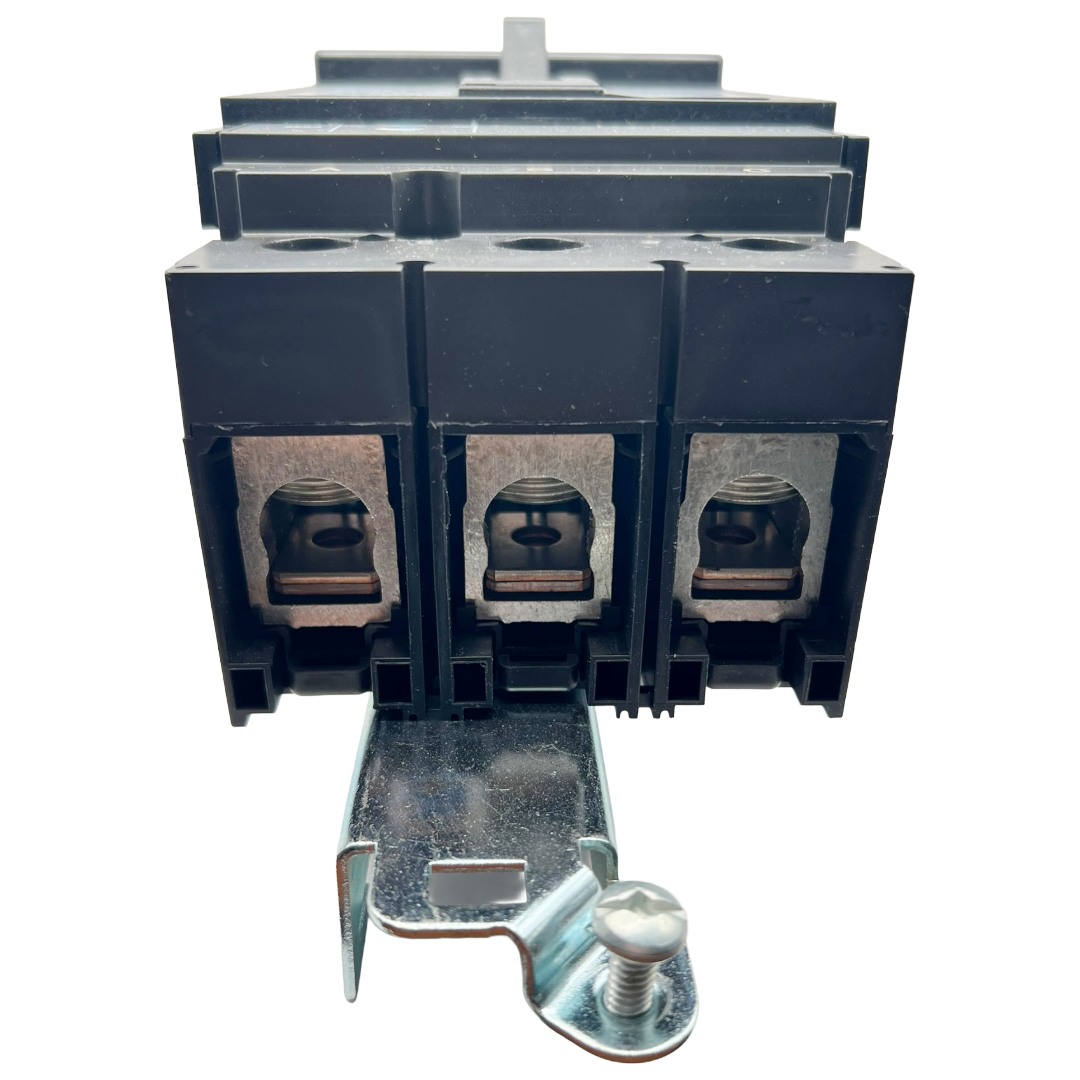

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. This breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
