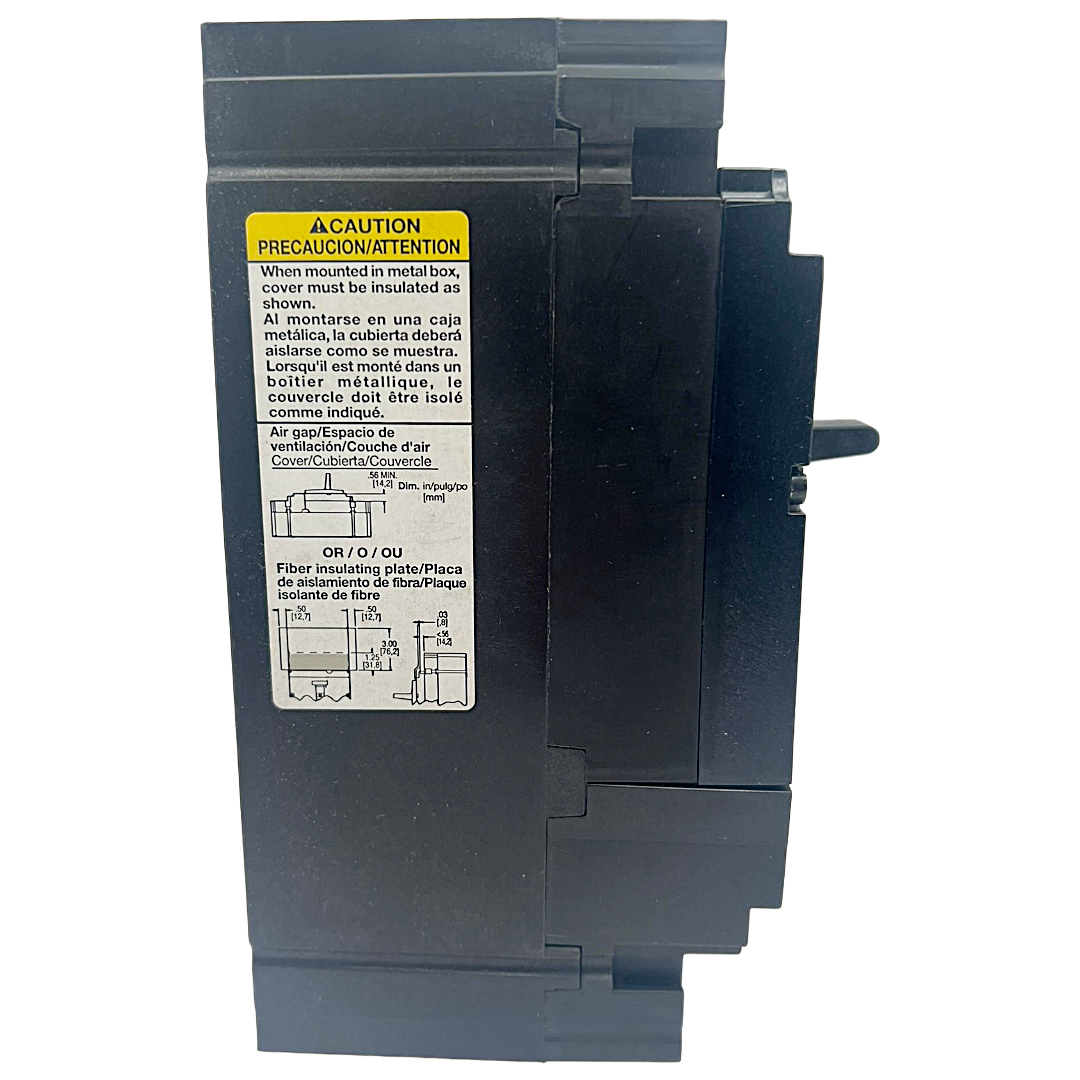

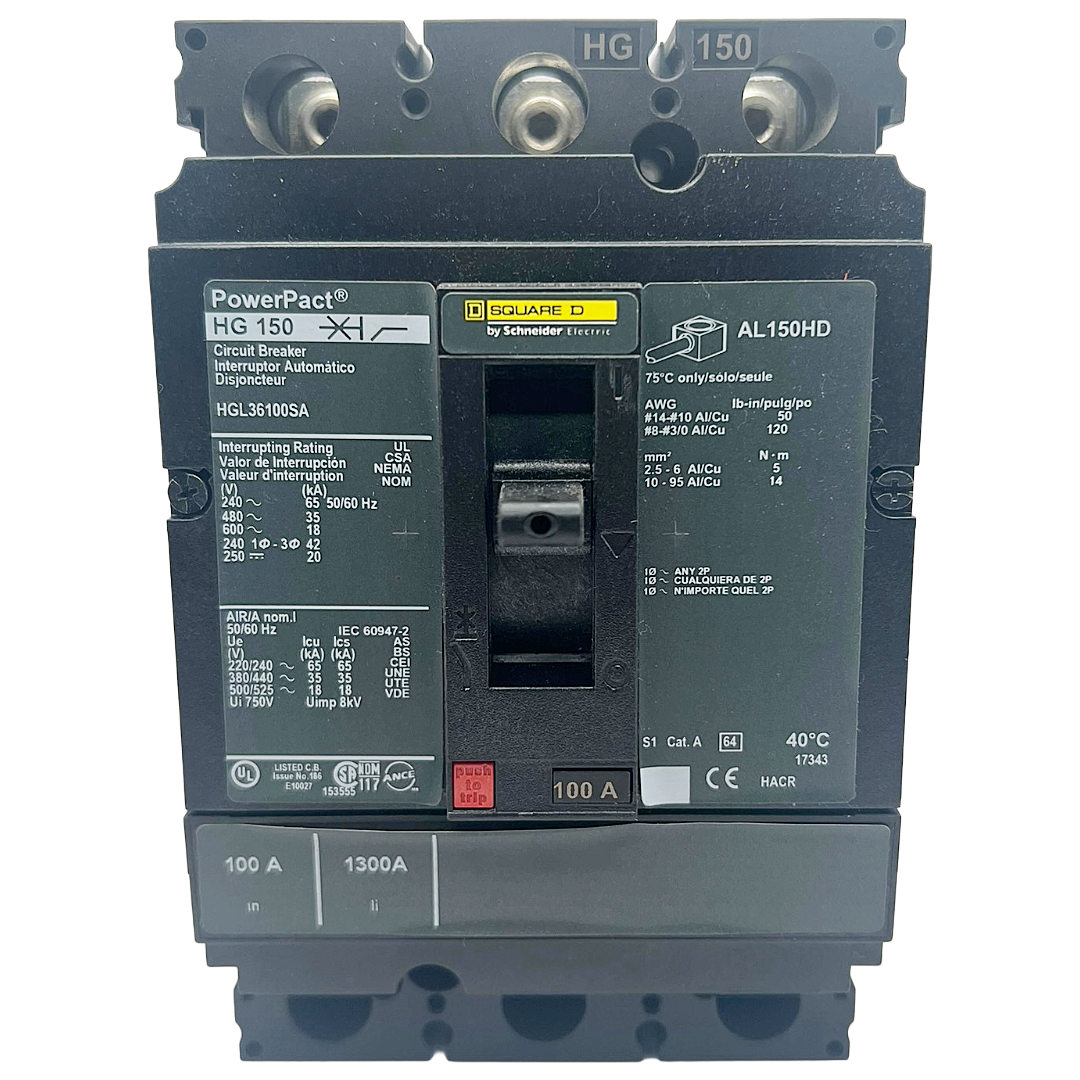

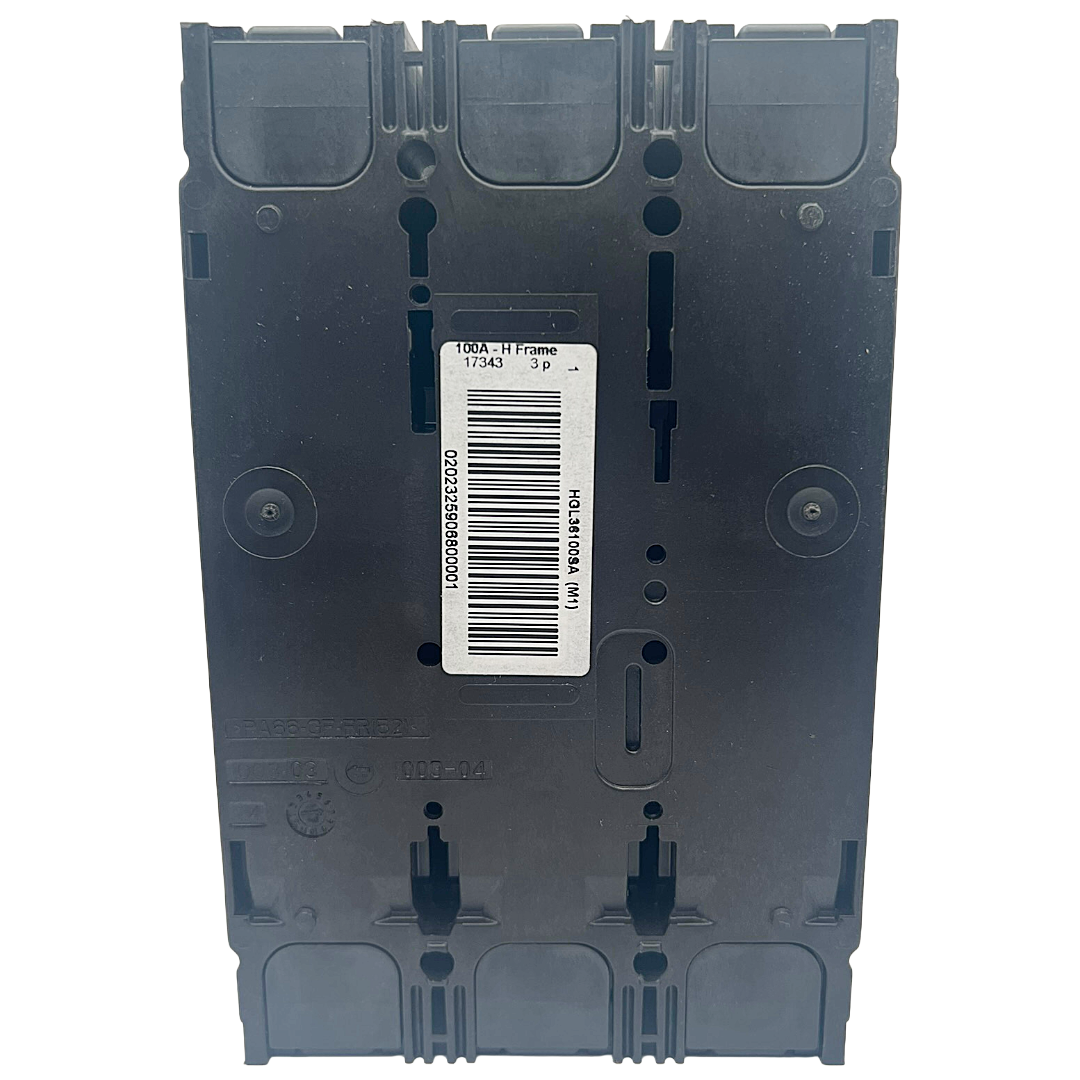

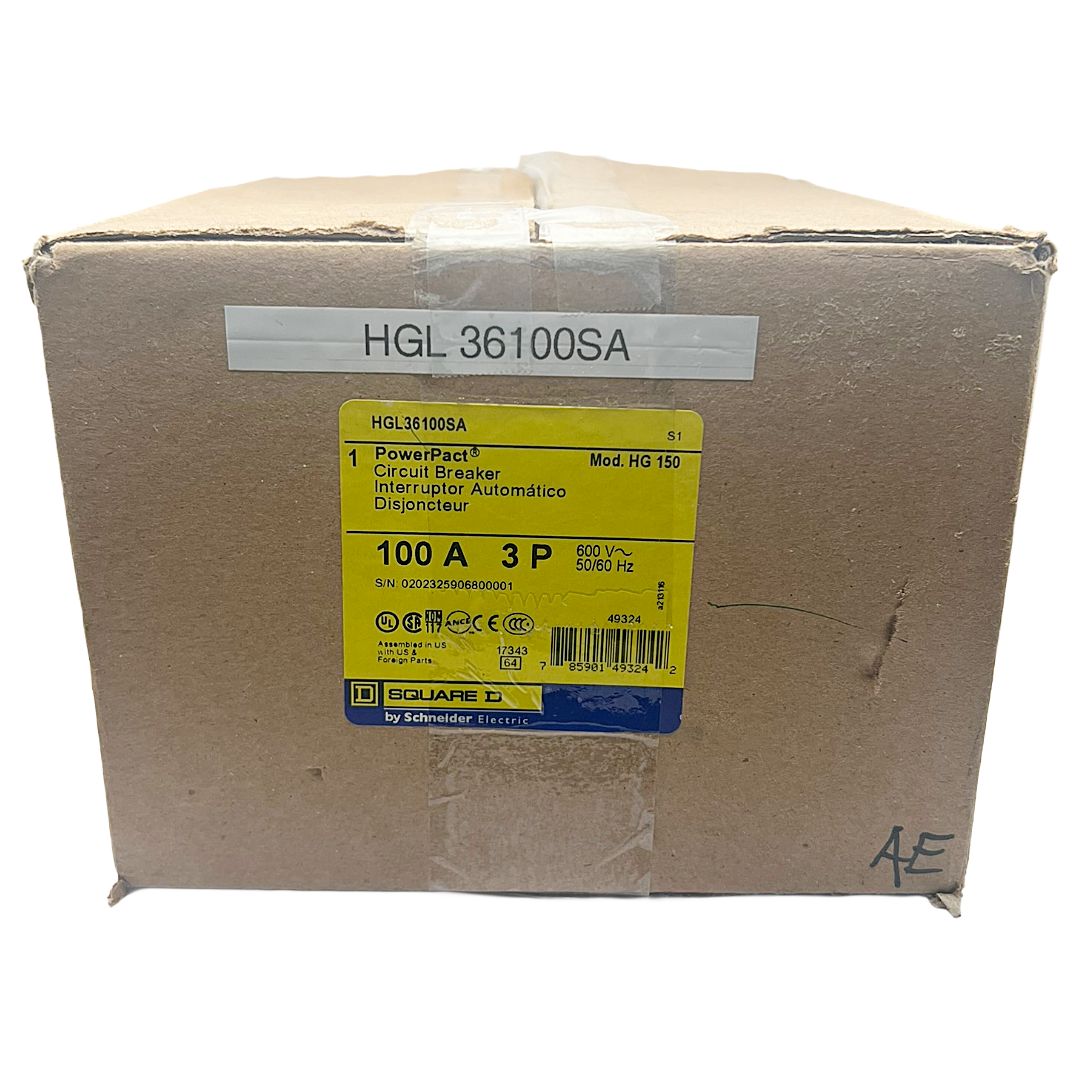

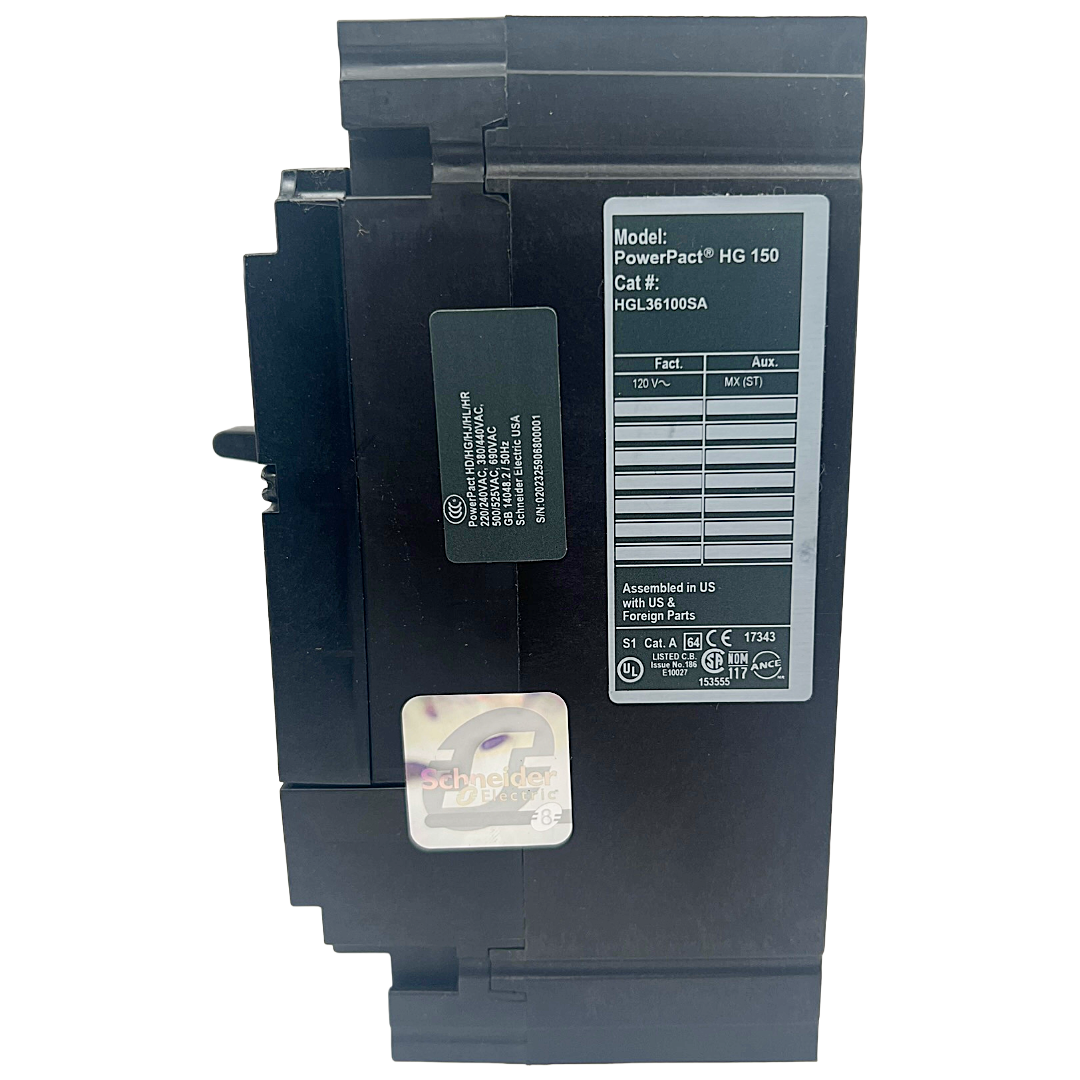

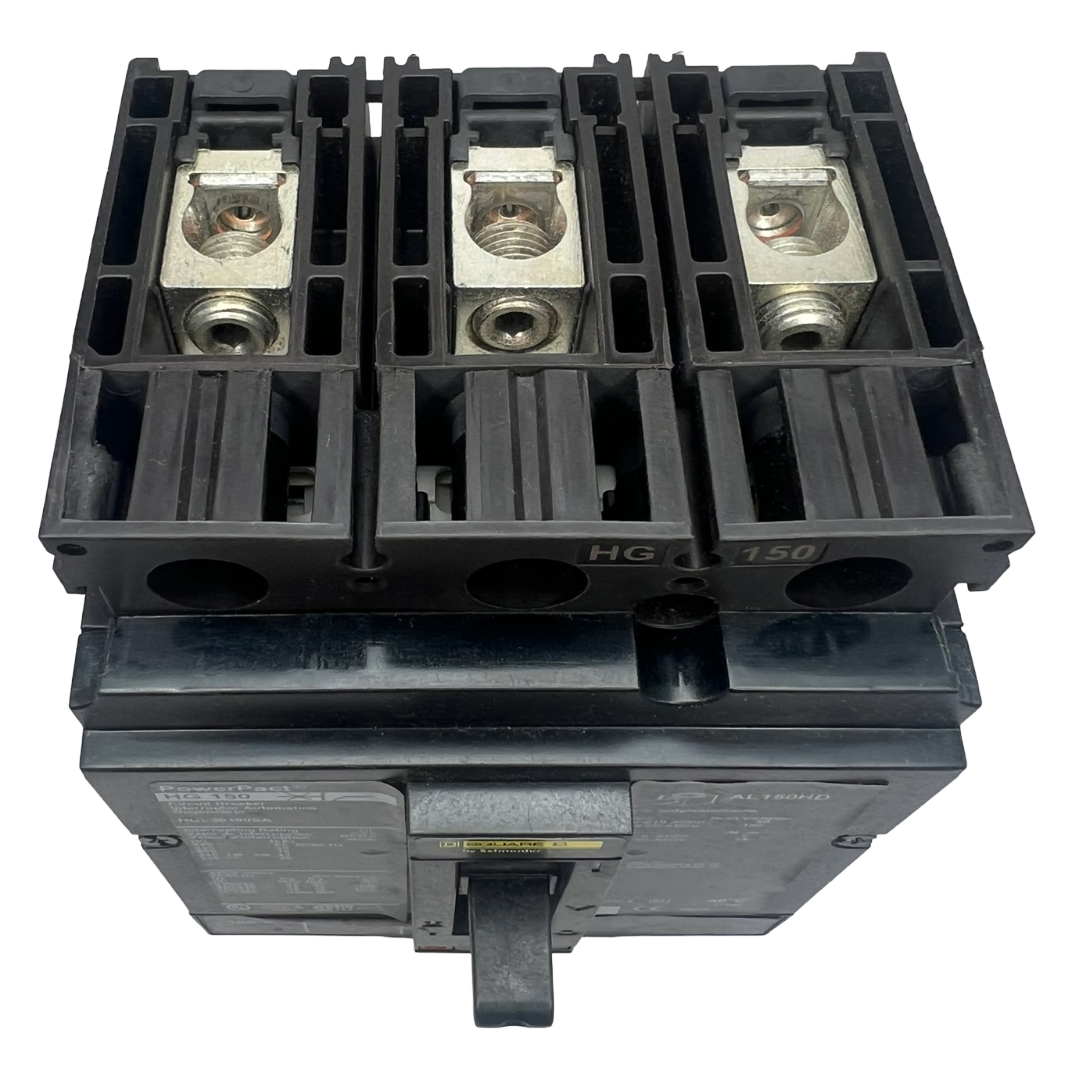

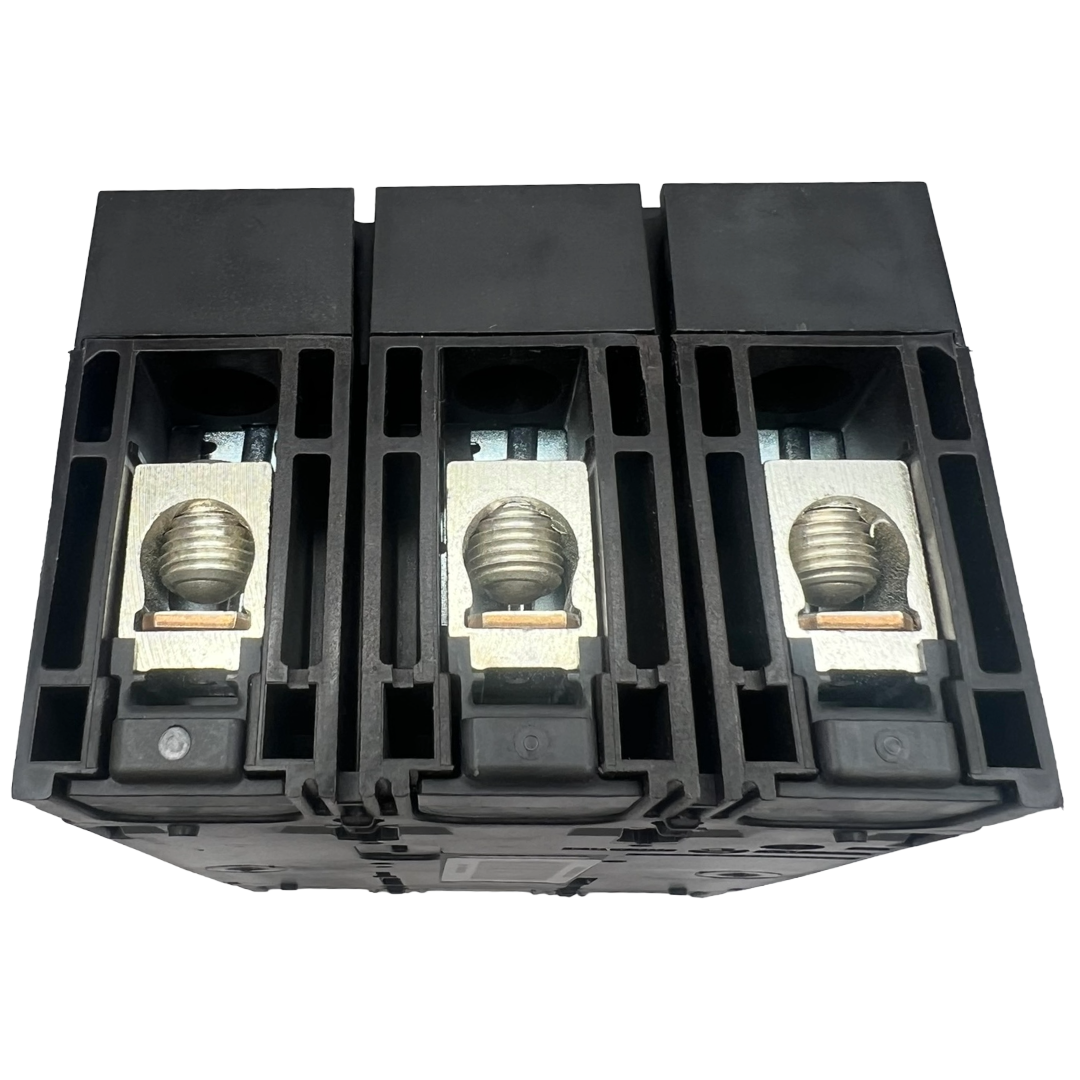

Square D HGL 3 Pole, 100 Amp, 600VAC PowerPact Circuit Breaker with Shunt Trip
Square D HGL 3 Pole, 100 Amp, 600VAC PowerPact Circuit Breaker with Shunt Trip is backordered and will ship as soon as it is back in stock.
- New,
- 100 Amp,
- 3 Pole,
- 18kA
- 600VAC,
- Lugs,
- UL Listed.
- UPC: 785901493242.
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. This breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This breaker has lugs on both the line and load sides. This PowerPacT H, 100A, 3 pole, circuit breaker has a continuous current rating of 80%. This unit includes a factory installed 120VAC shunt trip. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
